SK-1D Broken Coupling Alignment Starter Kits


Broken Coupling Alignment Starter Kits
A basic inexpensive stainless steel hardware set for reading off the coupling face. 6" maximum span from shaft to coupling hub. Maximum shaft diameter is 3.5".

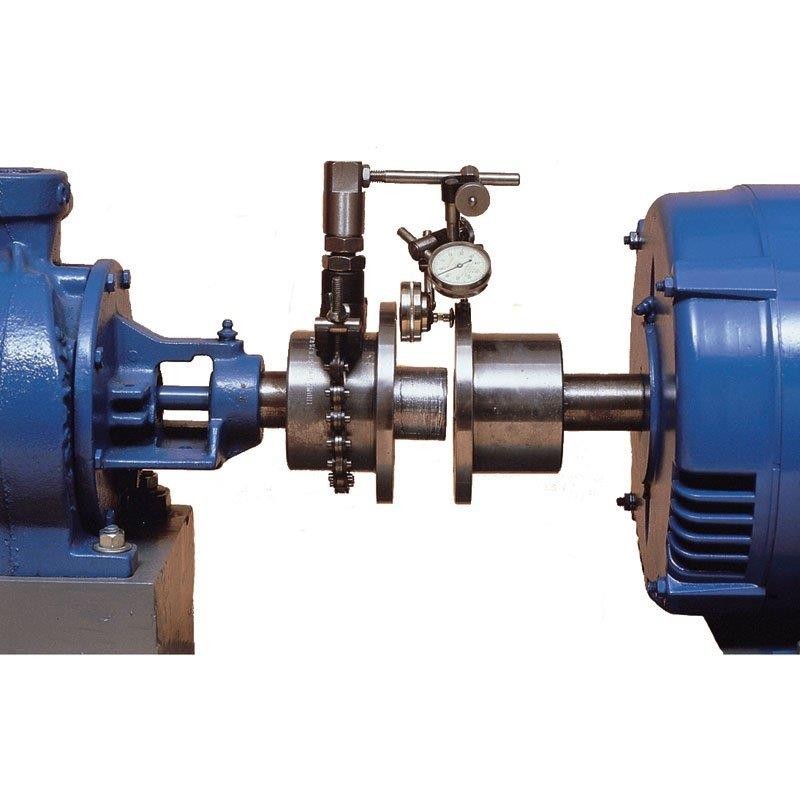

SK-1D Broken Coupling Starter Kit
A basic stainless steel hardware set for taking readings off the coupling rim and face.
Contains the following:

Part # Quantity Description
RA - 6 1 6" wide bracket base
CH - 10 1 10" long bracket base chain
RC - 3 2 5/8" jam nuts
RC - 4 2 1/4" jam nuts
RD - 2 1 5/8" threaded rod
RD - 5 1 Target post/Rod holder
MC - 1 3 Indicator clamps
RG - 3 1 3" adapter rod, 3/8" to 5/16" diameter, Plain
RG - 4 1 4" indicator rod, 5/16" diameter, Threaded
RG - 6 1 6" indicator rod, 5/16" diameter, Threaded
DI - 3 2 AGD Group 1 mini dial indicators

Packaged Dimensions: 16"L x 10"W x 8"H

SKU Details


Sku Images SKU Includes ADDTOCARTDETAILSANDPRICE
SK-1D: Starter Kit WITH dial indicators: 2 AGD Group 1 mini dial indicators
